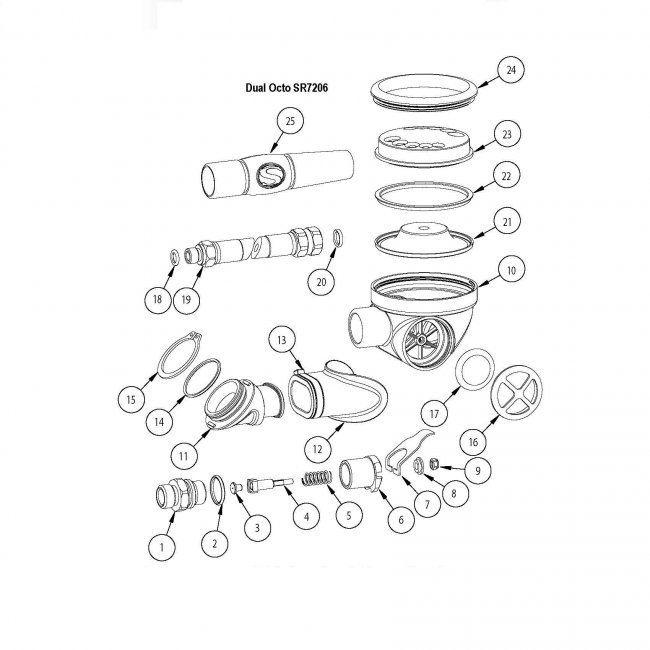

DUAL OCTOPUS SRB7206

For the latest parts pricing please use the Splash code in the search box in the top left hand corner.

Click here to access Service Manual

Item: Splash Code:       Part No: Description:
1   1-7206-7 Inlet Fitting
2   G015B O-Ring
3   7206-9BN LP Seat
4   9-7206-18 Poppet
5   19-7206-29 Spring
6   9-7206-9 Lever Support
7   7206-10 Lever
8   7206-73 Retaining Ring
9   7206-71 Locknut
10   7206-5 Housing
11   7206-2 Boss Mouthpiece
12     Mouthpiece
13 450660 3786-9W Cable Tie
14   970020 O-Ring
15   7206-68 Retaining C-Clip
16   7206-8 Exhaust Cover
17   7206-15 Exhaust Valve
18 451114-3 970011 O-Ring
19     Octopus Hose
20 161499 970010 O-Ring
21   7206-4A Diaphragm
22   7206-6 Retainer
23 451044-8 7206-23 Purge Cover
24   7206-24 Cover Ring
25 451045 7206-27 Hose Protector


 6000-9
Service Kit
