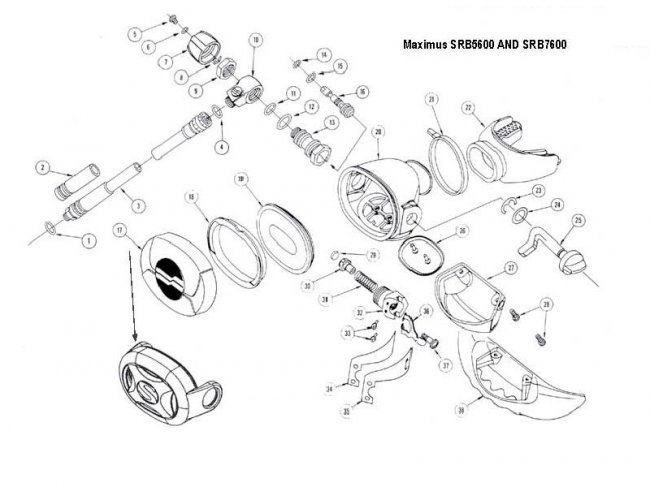

MAXIMUS SRB5600, SRB 7600 SECOND STAGE


For the latest parts pricing please use the Splash code in the search box in the top left hand corner.

Click here to access Service Manual
Maximus orifice recall 2004

Item: Splash code: Part No: Description:

1

161500

G011B

O-RING (HOSE INLET END)

2

390100

5100-27

HOSE PROTECTOR

3

390011

5016-20-41A

LP HOSE ASSEMBLY

4

161499

G010A

O-RING (HOSE OUTLET END)

5

451250

J12C04045B

SCREW ADJUSTER KNOB

6

450290

19-4006-17

WASHER ADJUSTER KNOB

7

450890

5602-16

ADJUSTER KNOB

8

450630

3602-35

RETAINING RING

9

180000

1-3602-15

NUT

10

451037

70-5602-14

SWIVEL FITTING

11

451170

G014C

O-RING

12

161520

G015C

O-RING

13

451036

70-5602-13

ORIFICE HOUSING

14

161495

G006B

O-RING

15

161500

G011B

O-RING

16

450427

29-5602-12

ORIFICE

17

Discontinued

5602-80

COVER

17a

451054

7600-80

COVER - NEW STYLE

18

450780

5100-6

RETAINING RING

19

450460

3108-13

DIAPHRAGM (BLUE)

20

450889

5602-1

CASE

21

450660

3786-9W

CABLE TIE

22

390022

5602-3LS

WISDOM MOUTHPIECE

23

450900

5602-3

RETAINER CLIP

24

451210

G106B

O-RING

25

450910

5602-5

ADJUSTING LEVER

26

450640

3602-6A

EXHAUST VALVE

27

450820

5100-9

EXHAUST TEE (SHORT)

28

450650

3702-5

SCREW (EXHAUST TEE)

29

451120

978-9BN

LP SEAT

30

450430

29-5700-1

STEM (NO SEAT INSERT)

31

450760

5100-29

SPRING

32

451110

9-5100-3A

LEVER SUPPORT

33

451240

J113481874

SCREW

34

450395

25-5700-21

HEAT TRANSFER FIN - FLAT

35

450396

25-5700-22

HEAT TRANSFER FIN - DIMPLE

36

450410

29-3108-3

LEVER

37

451050

73-5602-4

SCREW FOR LEVER

38

450960

5700-9BK

EXHAUST TEE (LONG)


450700
4000-4
Service Kit
  450701 4000-4N Nitrox Service Kit
