For the latest parts pricing please use the Pinnacle code in the search box in the top left hand corner.

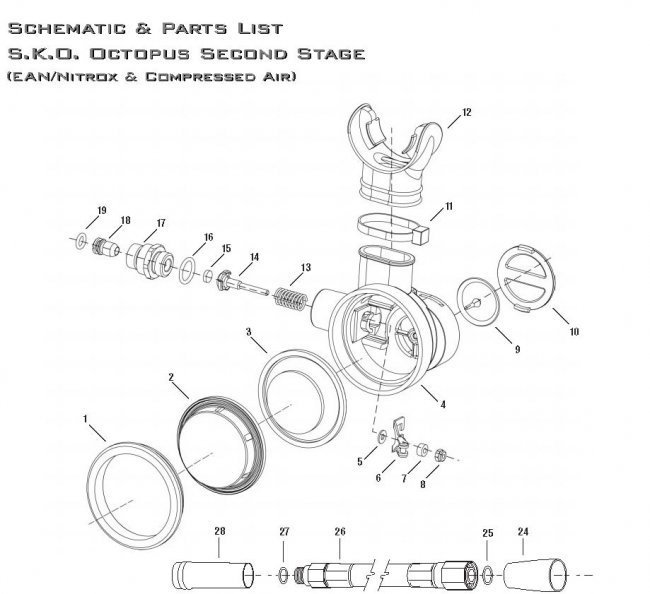

| Item: | Pinnacle code: | Part No: | Description: |
| 1 | 681160 | G6553 | COVER RING |
| 2 | 681043 | G5243 | DIAPHRAGM COVER |
| 3 | 681130 | G6380 | DIAPHRAGM |
| 4 | 681150 | G6454 | CASE - RIGHTHAND |
| 5* | 680960 | G5117 | WASHER |
| 6 | 680900 | G4587 | LEVER |
| 7 | 680855 | G4335 | SPACER |
| 8* | 680856 | G4336 | LOCKNUT |
| 9 | 680890 | G4576 | EXHAUST VALVE |
| 10 | 681135 | G6384-07 | EXHAUST GRILLE |
| 11* | 450660 | CABLE TIE | |
| 12 | 130315 | COMFY MOUTHPIECE | |
| 13 | 680945 | G5074 | SPRING |
| 14 | 680853 | G4333 | POPPET |
| 15* | 680860 | G4340 | LP SEAT |
| 16* | 680700 | G3-906 | O-RING |
| 17 | 680850 | G4330 | INLET COUPLING - S.K.O |
| 18 | 681170 | G6621 | ORIFICE |
| 19* | 680657 | G2-010 | O-RING |
| 24 | 180000 | G6325 | HOSE SLEEVE |
| 25* | 680657 | G2-010 | O-RING |
| 26 | 130255 | LP OCTOPUS HOSE | |
| 27* | 680800 | G3-903 | O-RING |
| 28 | 130266 | HOSE PROTECTOR | |
| * |
681760 |
PK060 |
Service Kit |
