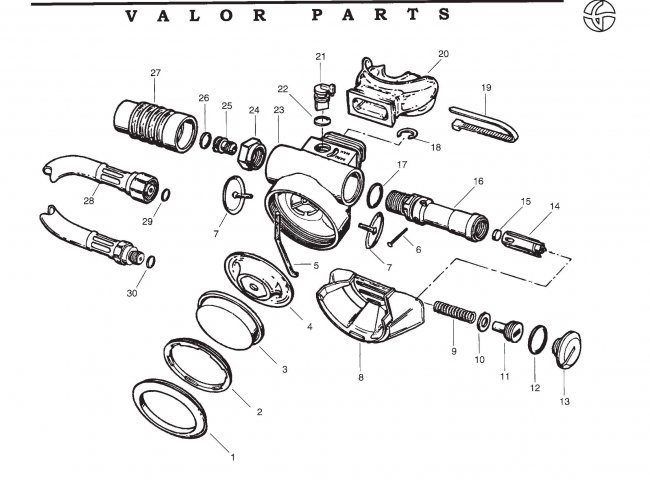

VALOR, VALOR OCTO 2ND STAGE - GR030, GS030

For the latest parts pricing please use the Pinnacle code in the search box in the top left hand corner.

Item: Pinnacle code: Part No: Description:
1 680290 G1001-52 COLOUR RING - BLACK
1A 680291 G1001-53 COLOUR RING - YELLOW
2 680268 G1001-19 RETAINING RING
3 680598 G1079-32 PURGE COVER
4 680305 G1001-81 DIAPHRAGM
5 680295 G1001-57 LEVER
6 680280 G1001-32 PIN
7* 680270 G1001-22 EXHAUST VALVE (2 required)
8 680262  G1001-10 EXHAUST TEE
9 680282 G1001-34 SPRING
10 680300 G1001-73 WASHER
11 680271 G1001-23 ADJUSTING SCREW
12* 690216 R016B O-RING
13 180000  G1001-62 CAP - BLACK
13A 180000  G1001-63 CAP - YELLOW
14 680275 G1001-27 POPPET
15* 680615 G1085-10 SEAT
16 680288 G1001-45 VALVE BODY
17* 690214  R014E O-RING
18 681230 G8601 C-CLIP
19 450660   TIE WRAP
20 130315    COMFY MOUTHPIECE
21 680260 G1001-08 VANE ADJUSTMENT SWITCH
22* 690210 R010B O-RING
23 Discontinued  G1079-34 CASE
24 680284 G1001-36 HEX NUT
25 680276 G1001-28 ORIFICE (CROWN)
26* 690210 R010B O-RING
27 Discontinued  G1079-17 HOSE PROTECTOR
28  180000  LPH-30 HOSE SLEEVE
29 130245   LP HOSE
29A 130255   LP OCTOPUS HOSE
30*  690210 R010B O-RING
31*  180000  R011B O-RING
     *
681730
PK030
Service Kit
