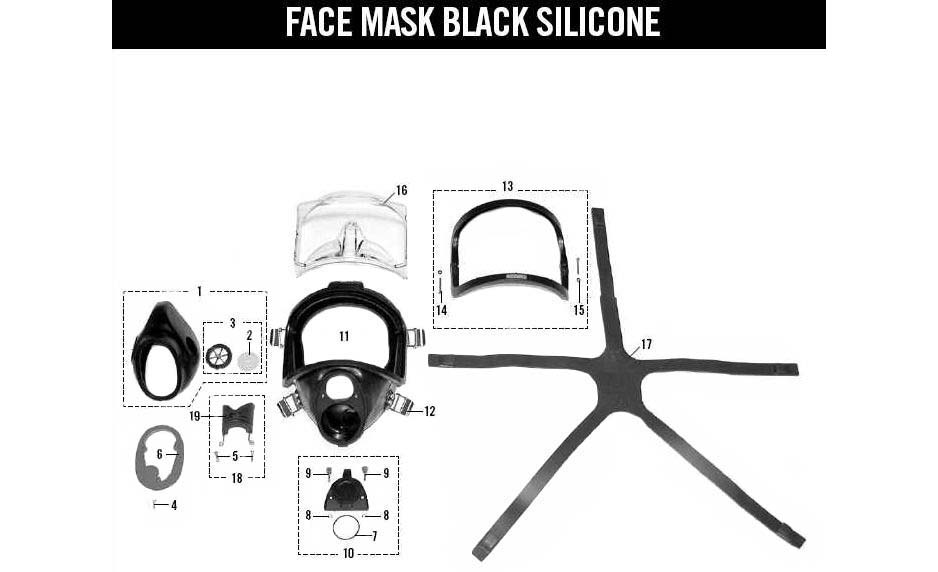

ITEM
| SPLASH CODE |
PART #
|
DESCRIPTION
|
|---|---|---|---|
|
-
|
180000 |
336-190-901
|
DIVATOR MKII MASK (NO SECOND STAGE)
|
|
1
|
180000 |
336-190-909
|
INNER MASK ASSY. MKII-G
|
|
2
|
160520 |
336-190-264-1
|
VALVE DISC
|
|
3
|
160560 |
336-900-021
|
NON-RETURN VALVE SEAT
|
|
4
|
180000 |
336-190-246-1
|
SCREW, RETAINING PLATE
|
|
5
|
180000 |
941-136-226
|
SCREW, PRESSURE EQUALIZER
|
|
6
|
160600 |
460-190-398
|
RETAINING PLATE
|
|
7
|
160220 |
283-036-000
|
O-RING, COVER ASSEMBLY
|
|
8
|
160517 | 336-190-255 | CIRCLIP |
|
9
|
160360 |
336-100-029
|
SCREW, COVER ASSEMBLY
|
|
10
|
160200 |
133032-000
|
COVER ASSEMBLY
|
|
11
|
180000 |
336-190-908
|
MASK BODY ASSY. MKII-G (BLACK COLOUR 460-190-544)
|
|
12
|
160640 |
460-190-541
|
BUCKLE ASSEMBLY
|
|
13
|
160648 |
460-190-548
|
VISOR FRAME ASSEMBLY
|
|
14
|
180000 |
336-900-097
|
SCREW, VISOR FRAME
|
|
15
|
180000 |
336-100-890
|
SPACER, VISOR FRAME
|
|
16
|
160550 |
336-190-850
|
LOW PROFILE VISOR
|
|
17
|
160580 |
460-190-375
|
HEAD HARNESS (GREY)
|
|
18
|
160540 |
336-190-373
|
PRESSURE EQUALIZER
|
|
19
|
180000 |
460-190-513
|
PUSH PAD
|
|

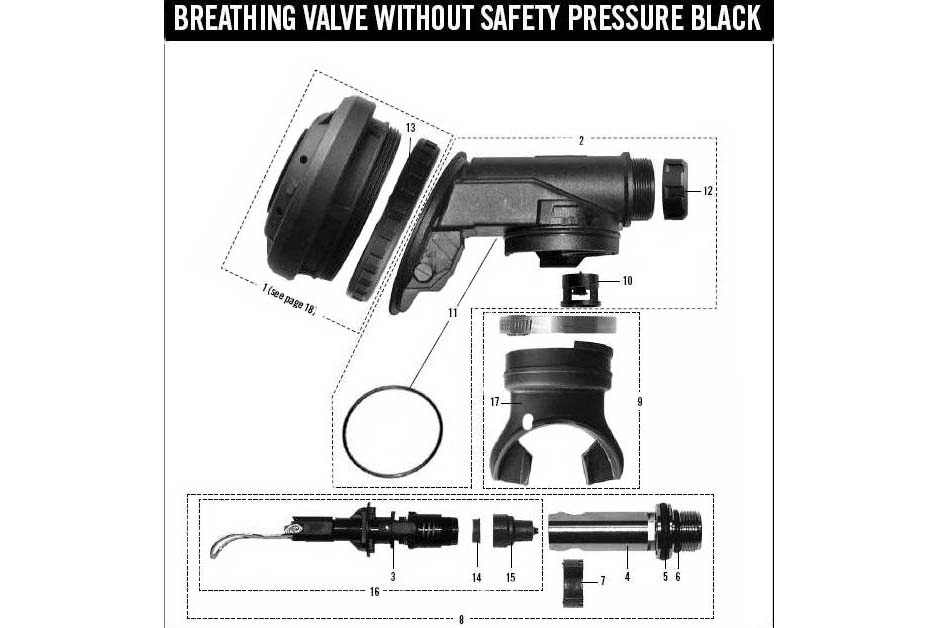

ITEM
| SPLASH CODE |
PART #
|
DESCRIPTION
|
|---|---|---|---|
|
-
|
180000 |
336-190-345
|
BREATHING VALVE ASSY. (GREY) NON POS.
|
|
-
|
180000 |
336-190-347
|
BREATHING VALVE ASSY. (GREY) W/MOUTHPIECE
|
|
1
|
180000 |
336-190-406
|
DIAPHRAGM ATTACHMENT (GREY) NON POS
|
|
2
|
180000 |
336-190-408
|
VALVE HOUSING MKII (GREY) NON POS
|
|
3
|
160680 |
460-190-588
|
COUNTER PRESSURE ASSEMBLY
|
|
4
|
180000 |
460-190-396
|
CONNECTION NIPPLE
|
|
5
|
160282 |
331-900-064
|
O-RING, CONNECTION NIPPLE (LG)
|
|
6
|
790742 |
336-900-007
|
O-RING, CONNECTION NIPPLE (SM)
|
|
7
|
160460 |
336-100-777
|
RETAINING RING
|
|
8
|
180000 |
460-190-558
|
VALVE INSERT ASSY.
|
|
9
|
180000 |
336-190-353
|
MOUTHPIECE ASSY.
|
|
10
|
160660 |
460-190-559
|
NON-RETURN VALVE ASSY.
|
|
11
|
160555 |
336-900-008
|
O-RING, VALVE HOUSING
|
|
12
|
180000 |
331-100-652
|
NUT (GREY)
|
|
13
|
180000 |
331-100-664
|
LOCKING RING (GREY)
|
|
14
|
160280 |
331-100-641
|
BALANCING DIAPHRAGM
|
|
15
|
160480 |
336-190-064
|
VALVE CONE ASSEMBLY
|
|
16
|
160680 |
460-190-588
|
COUNTER PRESSURE ASSEMBLY
|
| 16- | 160400 | 336-100-397 | LEVER SUPPORT |
| 16- | 160340 | 336-100-019 | SEALING SLEEVE |
| 16- | 160720 | 944-127-124 | PIN - SMALL |
| 16- | 160380 | 336-100-046 | PIN - LARGE |
|
17
|
180000 |
460-190-505
|
MOUTH PIECE
|
|
|
160700 |
900256-006 |
AGA MINOR MAINTENANCE KIT |
|

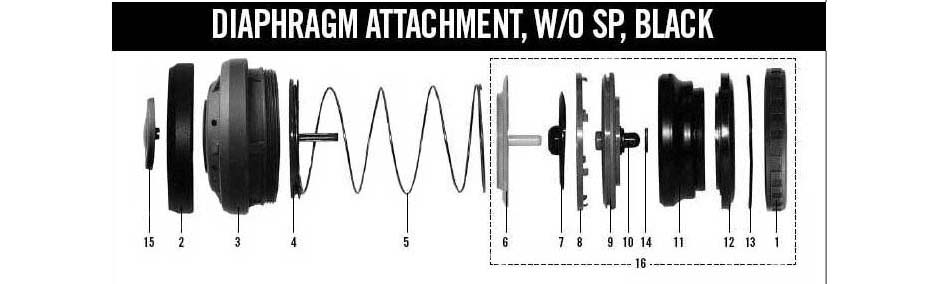

ITEM
| SPLASH CODE |
PART #
|
DESCRIPTION
|
|---|---|---|---|
|
1
|
180000 |
331-100-664
|
LOCKING RING (GREY)
|
|
2
|
180000 |
336-800-184
|
SHIELD RING
|
|
3
|
180000 |
96343-51
|
COVER, INCLUDES PURGE BUTTON (GREY)
|
|
4
|
180000 |
460-190-412
|
GUIDE DISC
|
|
5
|
180000 |
333-100-056
|
SEALING SPRING
|
|
6
|
180000 |
336-100-005
|
SEALING DISC
|
|
7
|
160300 |
336-100-006
|
EXHALATION DIAPHRAGM
|
|
8
|
180000 |
336-100-008
|
SECURING RING
|
|
9
|
180000 |
460-190-394
|
DIAPHRAGM RING
|
|
10
|
160320 |
336-100-011
|
GUIDE PIN
|
|
11
|
160620 |
460-190-451
|
DIAPHRAGM
|
|
12
|
180000 |
460-190-395
|
DIAPHRAGM HOLDER
|
|
13
|
160240 |
283-037-000
|
O-RING, DIAPHRAGM HOLDER
|
|
14
|
160440 |
336-100-437
|
WASHER, GUIDE PIN
|
|
15
|
160420 |
336-100-432
|
PURGE BUTTON
|
|
16
|
180000 |
336-190-360
|
DIAPHRAGM ASSEMBLY
|
|
ITEM
| SPLASH CODE |
PART #
|
DESCRIPTION
|
|---|---|---|---|
|
-
|
180000 |
336-190-354
|
BREATHING VALVE ASSY. (GREY) POS. PRES.
|
|
1
|
180000 |
336-190-356
|
DIAPHRAGM ATTACHMENT (GREY) POS. PRES.
|
|
2
|
180000 |
336-190-379
|
VALVE HOUSING MKII (GREY) POS. PRES.
|
|
3
|
180000 |
460-190-589
|
VALVE INSERT ASSY. POS. PRES.
|
|
4
|
180000 |
460-190-396
|
CONNECTION NIPPLE
|
|
5
|
160282 |
331-900-064
|
O-RING, CONNECTION NIPPLE (LG)
|
|
6
|
790742 |
336-900-007
|
O-RING, CONNECTION NIPPLE (SM)
|
|
7
|
160460 |
336-100-777
|
RETAINING RING
|
|
8
|
180000 |
336-190-357
|
VALVE INSERT ASSY.
|
|
9
|
160660 |
460-190-559
|
NON-RETURN VALVE ASSY.
|
|
10
|
160555 |
336-900-008
|
O-RING, VALVE HOUSING
|
|
11
|
180000 |
331-100-652
|
NUT (GREY)
|
|
12
|
180000 |
331-100-664
|
LOCKING RING (GREY)
|
|
13
|
160280 |
331-100-641
|
BALANCING DIAPHRAGM
|
|
14
|
160480 |
336-190-064
|
VALVE CONE ASSY.
|
|
15/16
|
160500 |
336-190-142
|
LEVER ASSEMBLY, INCLUDES ITEM #16
|
|
16
|
180000 |
336-900-001
|
O-RING, POS. PRESSURE LEVER
|
|
17
|
180000 |
97028-51
|
VALVE INSERT SUB ASSEMBLY W/ POS PRES.
|
| 17- | 160400 | 336-100-397 | LEVER SUPPORT |
| 17- | 160340 | 336-100-019 | SEALING SLEEVE |
| 17- | 160720 | 944-127-124 | PIN - SMALL |
| 17- | 160380 | 336-100-046 | PIN - LARGE |
|
|
160700 |
900256-006 |
AGA MINOR MAINTENANCE KIT |
|

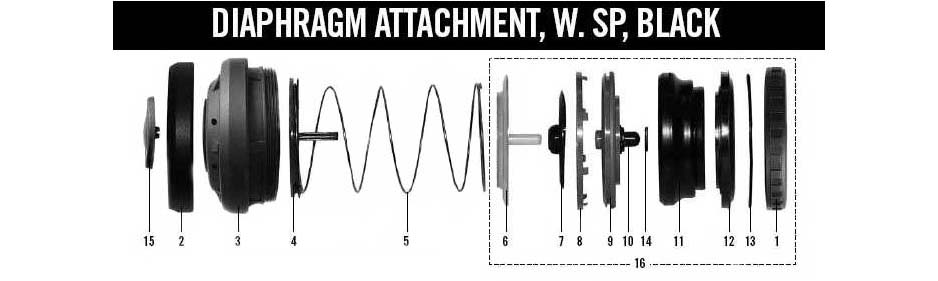

ITEM
| SPLASH CODE |
PART #
|
DESCRIPTION
|
|---|---|---|---|
|
1
|
180000 |
331-100-664
|
LOCKING RING (GREY)
|
|
2
|
180000 |
336-800-184
|
SHIELD RING
|
|
3
|
180000 |
96343-51
|
COVER, INCLUDES PURGE BUTTON (GREY)
|
|
4
|
180000 |
460-190-412
|
GUIDE DISC
|
|
5
|
180000 |
336-100-436
|
SEALING SPRING POS. PRES.
|
|
6
|
180000 |
336-100-005
|
SEALING DISC
|
|
7
|
160300 |
336-100-006
|
EXHALATION DIAPHRAGM
|
|
8
|
180000 |
336-100-008
|
SECURING RING
|
|
9
|
180000 |
460-190-394
|
DIAPHRAGM RING
|
|
10
|
160320 |
336-100-011
|
GUIDE PIN
|
|
11
|
160620 |
460-190-451
|
DIAPHRAGM
|
|
12
|
180000 |
460-190-395
|
DIAPHRAGM HOLDER
|
|
13
|
180000 |
336-900-009
|
O-RING, DIAPHRAGM HOLDER
|
|
14
|
160440 |
336-100-437
|
WASHER, GUIDE PIN
|
|
15
|
160420 |
336-100-432
|
PURGE BUTTON
|
|
16
|
180000 |
336-190-360
|
DIAPHRAGM ASSEMBLY
|
