For the latest parts pricing please use the Pinnacle code in the search box in the top left hand corner.
|

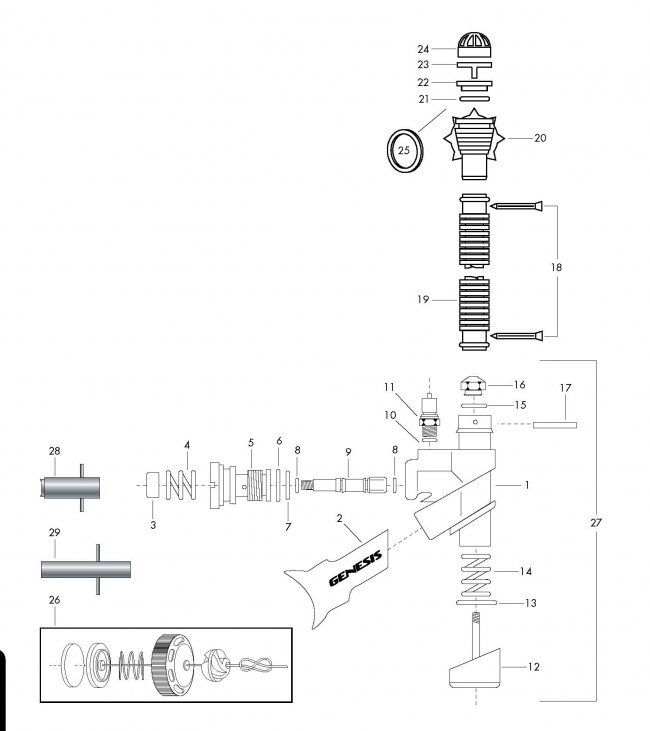

Item: |
Pinnacle Code: |
Part No: |
Description: |
1 |
165936 |
PP-01 |
INFLATOR BODY |
2 |
165942 |
PP-02 |
MOUTHPIECE |
| 3 | 165937 |
PP-03 |
POWER INFLATOR BUTTON |
| 4 | 165991 |
PP-04 |
POWER INFLATOR SPRING |
| 5 | 165941 |
PP-05 |
STEM HOUSING |
| 6 | 165921 |
R112 |
O-RING |
| 7 | 165924 |
R012 |
O-RING |
| 8 | 165920 |
R006 |
O-RING POLYURETHANE(2 REQUIRED) |
| 9 | 165940 |
PP-09 |
STEM |
| 10 | 161500 |
R011B |
O-RING |
| 11 | 165930 |
PP-11 |
QD FITTING MALE |
12 |
165938 |
PP-12 |
ORAL BUTTON |
13 |
180000 |
R116 |
O-RING |
14 |
165990 |
PP-14 |
DEFLATION SPRING |
15 |
165922 |
R110 |
O-RING |
16 |
165939 |
PP-16 |
EXHAUST SEAT |
17 |
165970 |
PP-17 |
RETAINING PIN |
18 |
450660 |
|
CABLE TIE |
19 |
165818 |
PP-19 |
FLEX HOSE 17" |
20 |
165960 |
PP-20 |
ELBOW CABLE ASSY 17" |
21 |
165923 |
R210 |
O-RING |
22 |
165948 |
PP-22 |
CHECK VALVE RETAINER |
23 |
165946 |
PP-23 |
EXHAUST VALVE |
24 |
165947 |
PP-24 |
EXHAUST CAP |
25 |
165973 |
PP-25 |
ELBOW GASKET |
26 |
165955 |
PP-30 |
REAR DUMP ASSY |
27 |
165817 |
GPP-50 |
POWER INFLATOR ASSY |
28 |
451730 |
20-660-200 |
INFLATOR VALVE TOOL |
29 |
450316 |
20-670-400 |
DUMP NUT AND QD TOOL |
|
|
163059
|
GPP-KIT
|
SERVICE KIT
|
