For the latest parts pricing please use the Pinnacle code in the search box in the top left hand corner.

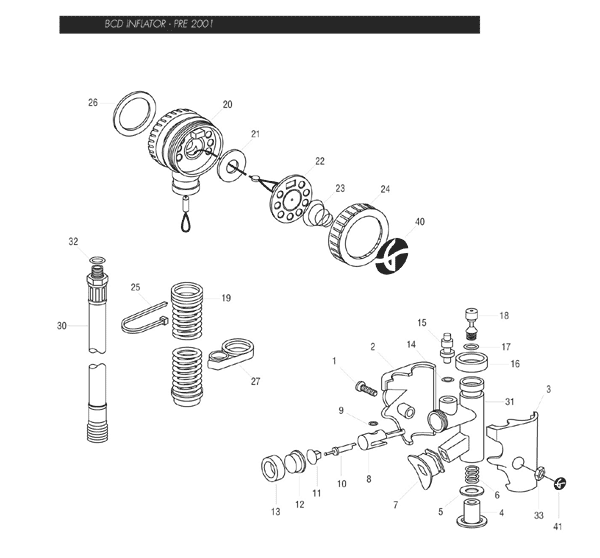

| Item: | Pinnacle code: | Part No: | Description: |
1 |
165841 |
PI-01 |
SCREW |
2 |
165842 |
PI-02G |
SHELL - SCREW SIDE |
3 |
165842 |
PI-03G |
SHELL - NUT SIDE |
4 |
165843 |
PI-04 |
ORAL BUTTON |
5 |
165844 |
PI-05 |
ORAL BUTTON WASHER |
6 |
165991 |
PI-06 |
ORAL BUTTON SPRING |
7 |
165846 |
PI-07G |
MOUTHPIECE |
8 |
165847 |
PI-08 |
METAL INSERT |
9 |
165848 |
R007 |
O-RING |
10 |
Discontinued |
PI-10 |
SCHRADER VALVE |
11 |
165849 |
PI-11 |
POWER BUTTON |
12 |
165850 |
PI-12 |
BUTTON COVER |
13 |
165851 |
PI-13-BK |
POWER BUTTON RING |
14 |
165854 |
R108 |
O-RING |
15 |
165852 |
PI-15 |
QD FITTING |
16 |
165853 |
PI-16 |
HOSE RING |
17 |
165854 |
R108 |
O-RING |
18 |
Discontinued |
PI-18 |
DISCONTINUED |
19 |
180000 |
PI-19 |
FLEX HOSE |
20 |
Discontinued |
PI-20 |
DISCONTINUED |
21 |
165821 |
PI-21 |
ELBOW SEAT WASHER |
22 |
165822 |
PI-22 |
PLATE CABLE ASSY |
23 |
165823 |
PI-23 |
O/P SPRING |
24 |
165824 |
PI-24G |
ELBOW CAP |
25 |
450660 |
|
TIE WRAP |
26 |
165826 |
PI-26 |
MANIFOLD GASKET |
27 |
165856 |
PI-27 |
HOSE CLIP |
30 |
130240 |
SLP150 |
BCD HOSE |
31 |
Discontinued |
PI-31G |
HOUSING |
32 |
690305 |
R905B |
O-RING |
33 |
165858 |
PI-33 |
NUT |
40 |
Discontinued |
PI-40G |
DISCONTINUED |
41 |
Discontinued
|
PI-41G |
STICKER |
42 |
Discontinued
|
PI-42 |
REAR DUMP ASSEMBLY |
|
|
165829 |
|
COMPLETE SHOULDER DUMP |
