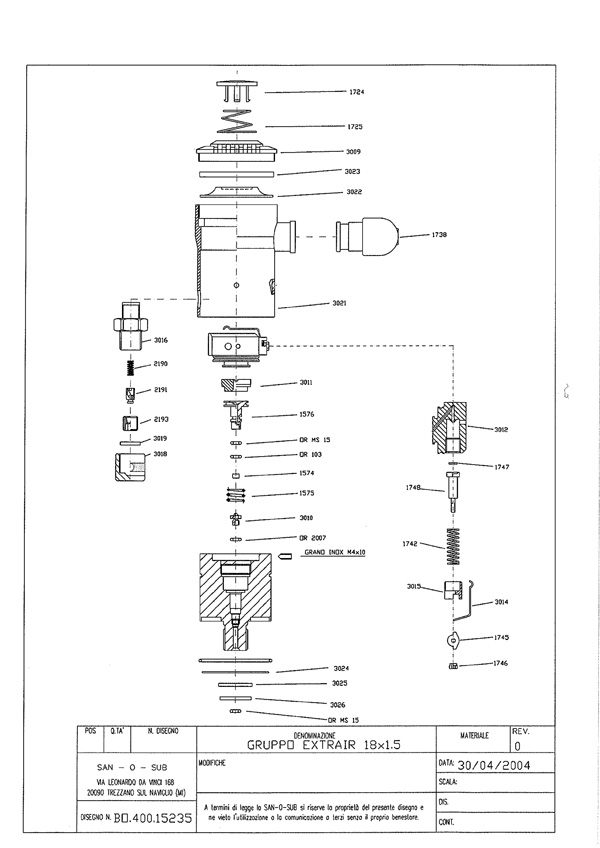

Item |
Splash Code |
Product Number |
Description |
| 1 | 180000 | 1724 | Purge button |
| 2 | 180000 | 1725 | Purge spring |
| 3 | 180000 | 3009 | 2nd Stage cover |
| 4 | 180000 | 3023 | Diaphragm retainer |
| 5 | 180000 | 3022 | Main diaphragm - 2nd stage |
| 6 | 790783-3 | 1738 | Mouthpiece |
| 7 | 180000 | 3021 | 2nd Stage body |
| 8 | 180000 | 3016 | Charging connection |
| 9 | 180000 | 2190 | Valve spring retainer |
| 10 | 180000 | 2191 | Valve poppet check valve |
| 11 | 180000 | 2193 | Check valve screw |
| 12 | 180000 | 3019 | Charging sealing cap |
| 13 | 180000 | 3018 | Filling plug |
| 14 | 180000 | 3011 | Piston ring |
| 15 | 790782-3 | 1576 | Piston |
| 16 | 790795-1 | OR MS 15 | Piston O-ring |
| 17 | 790786-1 | OR 103 | O-ring |
| 18 | 790782-1 | 1574 | HP seat |
| 19 | 180000 | 1575 | Piston spring |
| 20 | 790829-2 | 3010 | Orifice |
| 21 | 180000 | OR 2007 | O-ring |
| 22 | 180000 | 3012 | 2nd Stage head |
| 23 | 790783-7 | 1747 | LP seat |
| 24 | 180000 | 1748 | Popper (seat Carrier) |
| 25 | 180000 | 1742 | Poppet spring |
| 26 | 180000 | 3015 | Lever housing |
| 27 | 180000 | 3014 | Lever |
| 28 | 180000 | 1745 | Lever washer |
| 29 | 790783-6 | 1746 | Lock nut |
| 30 | 180000 | 3024 | Exhaust membrane |
| 31 | 790829-5 | 3025 | Plastic washer |
| 32 | 790829-6 | 3026 | Metal washer |
| 33 | 790795-1 | OR MS 15 | O-ring |
790781 |
Extrair Service Kit |
