For the latest parts pricing please use the Pinnacle code in the search box in the top left hand corner.

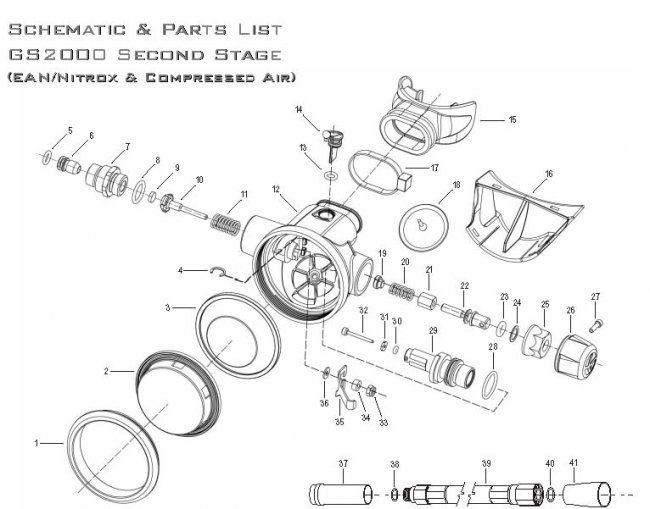

| Item: | Pinnacle code: | Part No: | Description: |
| 1 | 681052 | G5252 | COVER RING |
| 2 | 681020 | G5239-07A | DIAPHRAGM COVER |
| 3 | 681013 | G5236 | DIAPHRAGM |
| 4* | 681051 | G5251 | RETAINING RING |
| 5* | 680657 | G2-010 | O-RING |
| 6 | 681170 | G6621 | ORIFICE |
| 7 | 680850 | G4330 | COUPLING |
| 8* | 680700 | G3-906 | O-RING |
| 9* | 680860 | G4340 | LP SEAT |
| 10 | 680853 | G4333 | POPPET |
| 11 | 680908 | G4593 | POPPET SPRING |
| 12 | 681048 | G5248 | GS2000/ATLAS CASE |
| 13* | 680656 | G2-009 | O-RING |
| 14 | 681050 | G5250 | DIVE/PRE DIVE SWITCH |
| 15 | 130315 | MOUTHPIECE | |
| 16 | 681011 | G5234 | EXHAUST TEE |
| 17* | 450660 | TIE STRAP | |
| 18 | 681110 | G6326 | EXHAUST VALVE |
| 19 | 180000 | G4971 | SPRING PAD |
| 20 | 180000 | G4589 | SECONDARY SPRING |
| 21 | 180000 | G6331 | SPRING FOLLOWER |
| 22 | 681115 | G6630 | STEM |
| 23* | 680680 | G2-107 | O-RING |
| 24 | 680940 | G5054 | THRUST WASHER |
| 25 | 681117 | G6332 | PACKING NUT |
| 26 | 681015 | G5238 | ADJUSTMENT KNOB |
| 27 | 680920 | G4787 | RETAINING SCREW |
| 28 | 680664 | G2-016 | O-RING |
| 29 | 681045 | G5245 | ADJUSTMENT TUBE |
| 30* | 680650 | G2-004 | O-RING |
| 31* | 680930 | G4969 | SNAP WASHER |
| 32 | 681044 | G5244 | BALANCE SHAFT |
| 33* | 680856 | G4336 | LOCKNUT |
| 34 | 680855 | G4335 | SPACER |
| 35 | 681054 | G5254 | LEVER |
| 36* | 680960 | G5117 | WASHER |
| 37 | 130266 | HOSE PROTECTOR | |
| 38* | 680800 | G3-903 | O-RING |
| 39 | 130245 | LP HOSE | |
| 40 | 680657 | G2-010 | O-RING |
| 41 | 180000 | G6325 | HOSE SLEEVE |
|
* |
681750 |
PK050 |
Service Kit |
