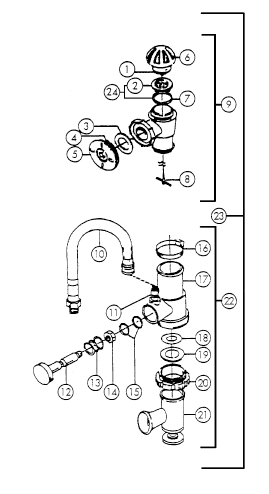

INFLATOR - SF1500 - DISCONTINUED

For the latest parts pricing please use the Splash code in the search box in the top left hand corner.

Item: Splash code: Part No: Description:

1

Discontinued    Check Valve

2

Discontinued   Check Valve Retainer

3

Discontinued   Elbow Gasket

4

Discontinued   External access fitting

5

Discontinued   Cable Assembly

6

Discontinued   Threaded Valve Cap

7

Discontinued   O-Ring

8

Discontinued   Cable Retaining Pin

9

Discontinued   Manual Dump Assembly

10

130240   BC Inflator Hose

11

Discontinued   Plug

12

Discontinued   Shaft Assembly

13

165698    Spring

14

165675    Lock Nut

15

165669    O-Ring (2 Required)

16

Discontinued   Hose Clamp

17

Discontinued   Body

18

Discontinued   Seal Gasket

19

165661   Retaining Ring

20

165660 1511-0000 Threaded Retaining Sleeve

21

165650 1000-3010 Oral Inflator Valve

22

Discontinued   Power Inflator Assembly

23

Discontinued   Inflator assembly
