Item: |
Splash Code: | Part No: | Description: |
|
1 |
450860 |
5105-70 |
HANDWHEEL |
|
2 |
451270 |
J2790056B |
STAR WASHER RETAINER |
|
3 |
450100 |
1390-7 |
FILTER |
|
4 |
450407 |
29-3106-13A |
MOVING ORIFICE (BARE) |
|
5 |
450628 |
3601-20 |
MOVING ORIFICE (COMPLETE) |
|
6 |
450300 |
19-8010-8 |
SPRING WASHERS (5 NEEDED) |
|
7 |
451140 |
G007A |
O-RING |
|
8 |
541280 |
MS28774-007 |
BACKUP WASHER |
|
9 |
450970 |
5705-20 |
DUST CAP |
|
10 |
450120 |
1-1665-17 |
YOKE NUT |
|
11 |
450320 |
2-1665-26 |
YOKE |
|
12 |
450331 |
2-3305-1 |
BODY - Magnum, Oasis |
|
12A |
450325 |
2-2105-1A |
BODY |
|
13 |
451225 |
G904A |
O-RING |
|
14 |
790579 |
|
HP PORT PLUG - 7/16 |
|
15 |
450450 |
3106-6 |
ONE WAY BLEED VALVE |
|
16 |
790581 |
|
LP PORT PLUG - 3/8 |
|
17 |
161500 |
G011B |
O-RING |
|
18 |
451212 |
G122A |
O-RING |
|
19 |
450668 |
3801-12B |
MAIN SPRING |
|
20 |
450298 |
19-6526 |
SHIM |
|
21 |
451140 |
G007A |
O-RING |
|
22 |
450670 |
3801-5 |
PISTON SEAT |
|
23 |
450455 |
3107-10 |
PISTON |
|
24 |
161530 |
G022A |
O-RING |
|
25 |
450332 |
2-3305-2 |
CAP |
|
B1 |
450554 |
3504-6 |
LARGE STAR WASHER |
|
B2 |
180000 |
J26005-43B |
SMALL STAR WASHER |
|
B3 |
450265 |
18-3106-14 |
FILTER |
|
B4 |
161500 |
G011B |
O-RING |
|
B5 |
450407 |
29-3106-13A |
MOVING ORIFICE (BARE) |
|
B6 |
450628 |
3106-9 |
MOVING ORIFICE (COMPLETE) |
|
B7 |
450300 |
19-8010-8 |
SPRING WASHERS (4 NEEDED) |
450680 |
4000-15 |
Service Kit |

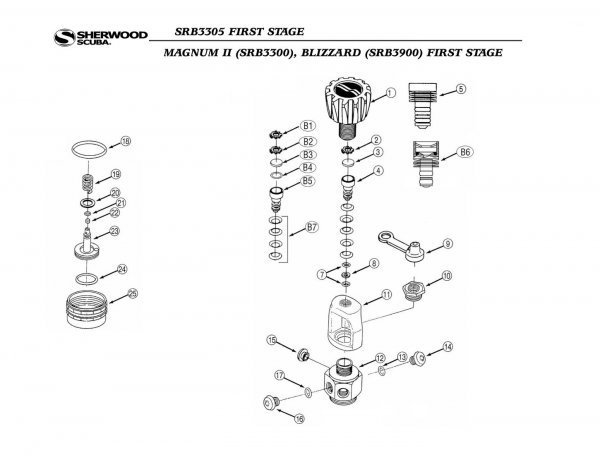

FIRST STAGE - MAGNUM®II SRB3300, BLIZZARD® SRB3200, OASIS® SRB3400
NOTE: The Oasis®+ SRB3500 uses the SRB3601 externally adjustable first stage. The parts breakdown and servicing of the SRB3601 is covered in the Oasis2/Blizzard Assembly & Maintenance Guide. Oasis®+ regulators manufactured in 1990 have the SRB3801 first stage with the DSS feature.
The servicing of the SRB3801 first stage is covered in the Ultima SRB3800 Assembly & Maintenance Guide.
To determine the first stage of a particular regulator, compare the regulator with the pictures and diagrams in this guide as well as the other guides referenced above. For further information, contact Pinnacle Sports Service Department.
ORIFICE ASSEMBLY PARTS FOR BLIZZARD FIRST STAGE SRB3205
The following parts are the only parts that differentiate the Blizzard SRB3205 first stage from the standard Magnum II type SRB3305 first stage:
B1......................3504-6 ........Larger Star Washer (holds orifice in body)
B2 ...............J26005-43B ......Smaller Star Washer (holds filter in orifice)
B3 ..................18-3106-14 ....Filter
B4 ....................G011B ........O-ring (seals filter to orifice)
B5 ...............29-3106-13 ......Moving Orifice (bare, no O-rings etc.)
B6 ....................3106-9 ........Moving Orifice Assembly (with O-rings & washers)
B7 ..............64-8010-8 ........Belleville Spring Washers (4 needed)
