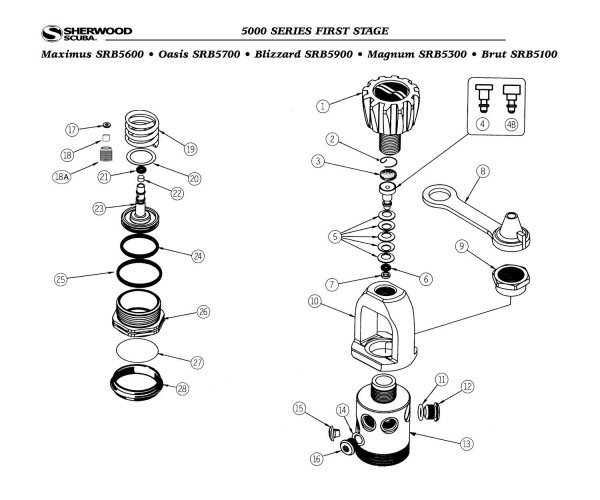

SRB5000 SERIES 1ST STAGE - DISCONTINUED

Item:

Splash Code:

Part No:

Description:

1

450860

5105-70

HANDWHEEL ASSEMBLY

2

451270

J2790056B

FILTER RETAINING RING

3

450100

1390-7

FILTER

4

450420

29-5305-4

MOVING ORIFICE

4B

450750

43-5105-4

BRUT ORIFICE

5

450300

19-8010-8

DISC SPRING (5 NEEDED)

6

451140

G007A

O-RING

7

451280

MS28774-007

BACKUP RING

8

450970

5705-20

DUST CAP

9

450120

1-1665-17

YOKE NUT

10

450320

2-1665-26

YOKE (BRUT & MAGNUM SHINY FINISH)

10

450990

69-1665-26

YOKE (OASIS & BLIZZARD, MATTE FINISH)

10

451020

70-1665-26

YOKE (MAXIMUS,SATIN FINISH)

11

451225

G904A

O-RING

12

790579

HP PORT PLUG - 7/16

13

450340

2-5105-1

BODY (BRUT,SHINY,1HP PORT)

13

450360

2-5305-1

BODY (MAGNUM,SHINY,2HP PORTS)

13

451010

69-5705-1

BODY (OASIS & BLIZZARD, MATTE FINISH)

13

451040

70-5705-1

BODY (MAXIMUS,SATIN FINISH)

14

161500

G011B

O-RING

15

450450

3106-6

"DRY AIR BLEED" VALVE

16

790581

1-3105-6

LP PORT PLUG - 3/8

17

450850

5105-6

FLOW CONTROL GASKET

18A

450831

5105-13

FLOW RESTRICTOR SCREW

18

450832

5105-14

FILTER

19

450830

5105-12

MAIN SPRING (Discontinued)

20

450870

5105-7PK

SHIM

21

451140

G007A

O-RING

22

450670

3801-5

HP SEAT

23

450390

25-5105-3

PISTON (NE SEAT OR O-RING)

24

161530

G022A

O-RING

25

161540

G025A

O-RING

26

450350

2-5105-2

BRUT CAP (SHINY,NO LABEL)

26

450370

2-5305-2

MAGNUM CAP(SHINY FINISH)

26

451000

69-5305-2

OASIS/BLIZZARD CAP (MATTE)

26

451030

70-5305-2

MAXIMUS CAP (SATIN FINISH)

27

450925

5700-15

CAP LABEL (MAGNUM,OASIS,BLIZZARD)

28

180000

5705-21E

TRIM RING MAXIMUS

28

450971

5705-21

TRIM RING (OASIS,BLIZZARD)

450680

4000-15

Service Kit
