For the latest parts pricing please use the Pinnacle code in the search box in the top left hand corner.

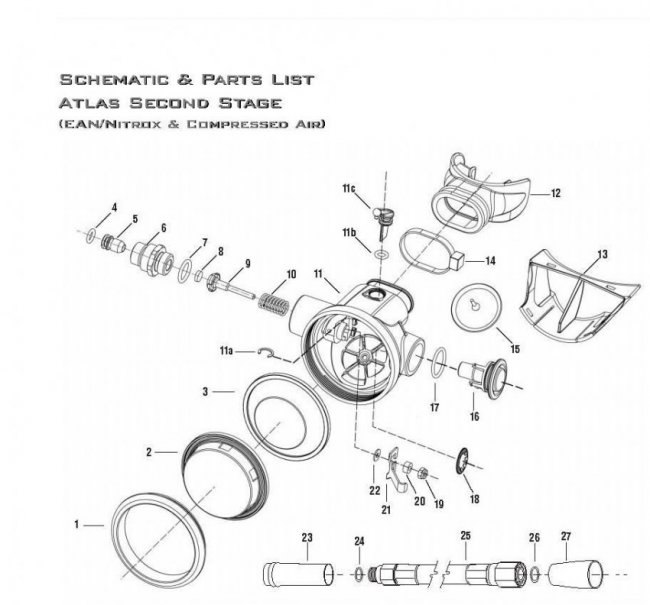

| Item: | Pinnacle Code: | Part No: | Description: |
| 1 | 681040 | G5240 | Cover Ring |
| 2 | 681021 | G5239-07B | Front Cover |
| 3 | 681013 | G5236 | Diaphragm |
| 4* | 680657 | G2-010 | O-Ring |
| 5 | 681170 | G6621 | Orifice |
| 6 | 680850 | G4330 | Coupling |
| 7* | 680803 | G3-906 | O-Ring |
| 8* | 680860 | G4340 | LP Seat |
| 9 | 680853 | G4333 | Poppet |
| 10 | 680945 | G5074 | LP Spring |
| 11 | 681048 | G5248 | Case |
| 11a | 681051 | G5251 | Retaining Ring |
| 11b* | 680656 | G2-009 | O-Ring |
| 11c | 681050 | G5250 | Venturi Switch |
| 12 | 130315 | Mouthpiece | |
| 13 | 681011 | G5234 | Exhaust Tee |
| 14* | 450660 | Cable Tie | |
| 15 | 681110 | G6326 | Exhaust Valve |
| 16* | 681041 | G5241 | Plug |
| 17 | 680664 | G2-016 | O-Ring |
| 18 | 681056 | G5256 | Retaining Ring |
| 19* | 680856 | G4336 | Nut |
| 20 | 680855 | G4335 | Spacer |
| 21 | 681054 | G5254 | Lever |
| 22* | 680960 | G5117 | Washer |
| 23 | 130266 | Hose Protector | |
| 24* | 680800 | G3-903 | O-Ring |
| 25 | 130245 | LP Hose | |
| 26 | 680657 | G2-010 | O-Ring |
| 27 | 180000 | G6325 | Hose Sleeve |
| * |
681740 |
PK040 |
Service Kit |
