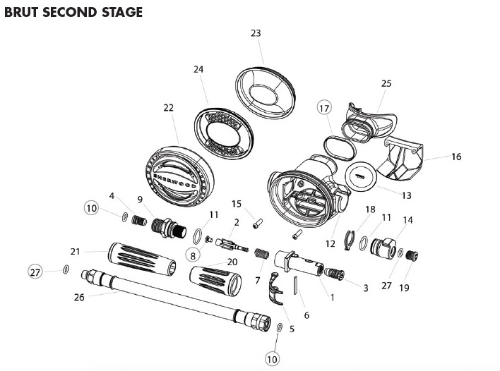

| ITEM | PART # | SPLASH CODE | DESCRIPTION |
| 1 | SHV7014 | 180000 | VALVE BODY |
| 2 | SHV7020 | 180000 | POPPET |
| 3 | SHV7019 | 180000 | ADJUSTMENT SCREW |
| 4 | SHV7016 | 180000 | ADJUSTABLE ORIFICE |
| 5 | SHV7015 | 180000 | DEMAND LEVER |
| 6 | SHV7018 | 180000 | LEVER CAM |
| 7 | SHV7017 | 180000 | SPRING |
| 8 | SHV7005 | 451292 | POPPET SEAT |
| 9 | SHV7013 | 180000 | INLET CONNECTOR |
| 10 | SHV7071 | O-RING | |
| 11 | SHV7070 | O-RING | |
| 12 | SHV7021 | 180000 | HOUSING |
| 13 | SHV7006 | 180000 | EXHAUST VALVE |
| 14 | SHV7022 | 180000 | ACCESS PLUG |
| 15 | SHV7027 | 180000 | SCREW |
| 16 | SHV7024 | 180000 | EXHAUST TEE |
| 17 | SHV7026 | 180000 | TIE WRAP |
| 18 | SHV7025 | 180000 | C CLIP |
| 19 | SHV7023 | 790581 | PORT PLUG LP |
| 20 | SHV7032 | 180000 | HOSE PROTECTOR (SHORT) |
| 21 | SHV7031 | 130226 | HOSE PROTECTOR (LONG) |
| 22 | SHV7095 | 180000 | PURGE COVER |
| 23 | SHV7090 | 451355 | DIAPHRAGM |
| 24 | SHV7012 | 180000 | DIAPHRAGM RETAINER |
| 25 | SHV7028 | 130313 | MOUTH PIECE |
| 26 | SHV7530 | 130245 | HOSE W/ORING |
| 27 | SHV7075 | 180000 | O-RING |
| FULL BRUT 1ST/2ND STAGE KIT 450705 |
