For the latest parts pricing please use the Splash code in the search box in the top left hand corner.

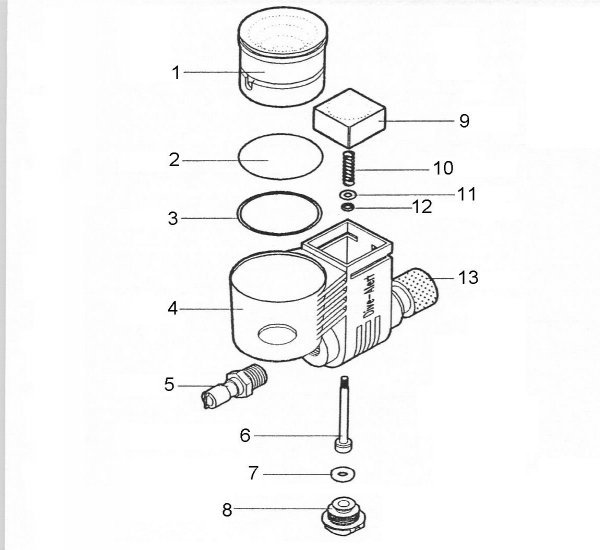

| Item: | Splash code: | Part No: | Description: |
1
|
164200 |
DA-0101 |
HORN BELL |
2
|
164201 |
DA-0102 |
DIAPHRAGM |
3 |
164202 |
DA-0103 |
DIAPHRAGM WASHER |
4 |
164203 |
DA-0104 |
BODY |
5 |
164204 |
DA-0105 |
MALE COUPLER |
6 |
164205 |
DA-0106 |
STEM |
7 |
164206 |
DA-0107 |
O-RING,BODY PLUG (AS568-009) |
8 |
164207 |
DA-0108 |
BODY PLUG |
9 |
164208 |
DA-0109 |
BUTTON |
10 |
164209 |
DA-0110 |
SPRING |
11 |
164210 |
DA-0111 |
WASHER |
12 |
164211 |
DA-0112 |
O-RING,STEM (1.5mm X 3mm) |
13 |
164212 |
DA-0113 |
FEMALE COUPLER - DA1 |
13A & 13B |
180000 |
FEMALE COUPLER - DA2, DA3 |
