For the latest parts pricing please use the Splash code in the search box in the top left hand corner.

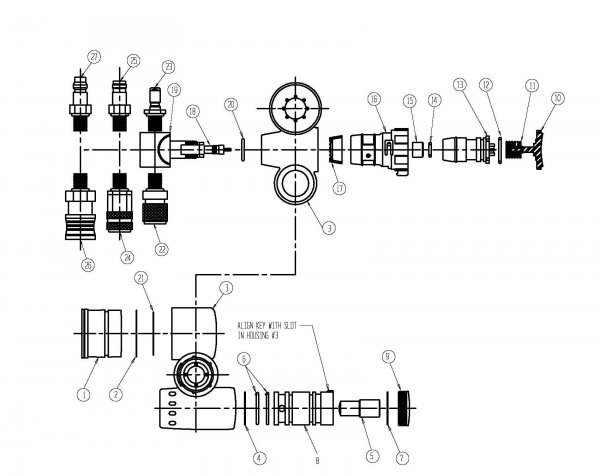

| Item: | Splash Code: | Part No: | Description: |
| 1 | 180000 | 10102 | Internal Horn Bell |
| 2 | 180000 | 10103 | Diaphragm |
| 3 | 180000 | 10101 | Housing |
| 4 | 180000 | 10120 | Diaphragm |
| 5 | 180000 | 10124 | Piston |
| 6 | 180000 | 70019 | O-Ring (2 required) |
| 7 | 180000 | 10126 | Gasket |
| 8 | 180000 | 10125 | Piston Chamber |
| 9 | 180000 | 10114 | Cap |
| 10 | 180000 | 10123 | Button - Red |
| 11 | 180000 | 12101 | Spring |
| 12 | 180000 | 70115 | O-Ring |
| 13 | 180000 | 10115 | Retainer |
| 14 | 180000 | 70114 | O-Ring |
| 15 | 180000 | 10121 | Stem Retainer |
| 16 | 180000 | 10110 | Diverter |
| 17 | 180000 | 10117 | Ratchet Bushing |
| 18 | 180000 | 10122 | Shrader Valve |
| 19 | 180000 | 10113 | Coupler Adapter |
| 20 | 180000 | 75012 | O-Ring |
| 21 | 180000 | 10104 | Gasket |
| 22 | 180000 | 1XCF | Female Air Coupling - DP1 |
| 23 | 180000 | 1XCM | Male Air Coupling - DP1 |
| 24 | 180000 | 2XCF | Female Air Coupling - DP2 |
| 25 | 180000 | 2XCM | Male Air Coupling - DP2 |
| 26 | 180000 | 3XCF | Female Air Coupling - DP3 |
| 27 | 180000 | 3XCM | Male Air Coupling - DP3 |
