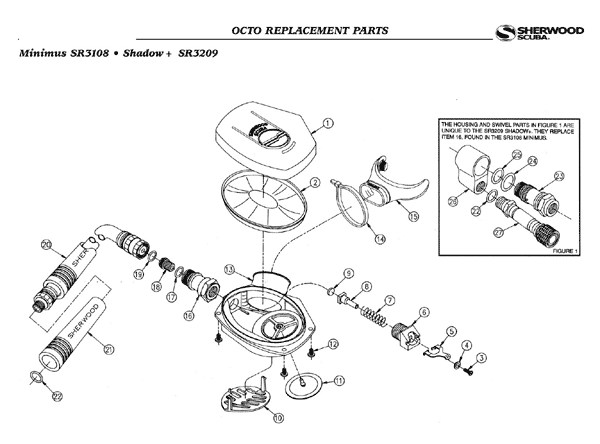

| Item: | Splash Code: | Part No: | Description: |
|
1 |
450500 |
3108R-6 |
COVER (RIGHT HAND VERSION) |
|
1 |
450489 |
3108L-6 |
COVER (LEFT & SHADOW VERSION) |
|
2 |
450460 |
3108-13 |
DIAPHRAGM (BLUE) |
|
3 |
451250 |
J12C04045B |
SCREW |
|
4 |
450290 |
19-4006-17 |
WASHER |
|
5 |
450470 |
3108-3 |
LEVER |
|
6 |
451070 |
9-3108R-9 |
LEVER SUPPORT (RIGHT HAND) |
|
6 |
451069 |
9-3108L-9 |
LEVER SUPPORT (LEFT HAND) |
|
7 |
450270 |
19-3602-29 |
SPRING |
|
8 |
451060 |
9-3108-18 |
STEM |
|
9 |
451120 |
978-9BN |
LP SEAT |
|
10 |
450480 |
3108-8 |
EXHAUST GRILL |
|
11 |
450720 |
4006-15 |
EXHAUST VALVE |
|
12 |
450650 |
3702-5 |
SCREW |
|
13 |
450490 |
3108R-5 |
CASE (RIGHT HAND VERSION) |
|
13 |
450489 |
3108L-5 |
CASE (LEFT HAND VERSION) |
|
14 |
450660 |
|
CABLE TIE |
|
15 |
390021 |
3602-3 |
STANDARD MOUTHPIECE |
|
16 |
450160 |
1-3108-7 |
ORIFICE HOUSING |
|
17 |
161499 |
G010A |
O-RING |
|
18 |
450740 |
43-4006-20 |
ADJUSTABLE ORIFICE |
|
19 |
161499 |
G010A |
O-RING |
|
20 |
130255 |
|
OCTO LP HOSE FOR MINIMUS |
|
21 |
390009 |
3208-40-23 |
LP HOSE 23" FOR SHADOW + |
|
22 |
161500 |
G011B |
O-RING |
|
23 |
450170 |
1-3209-7 |
ORIFICE HOUSING (SHADOW +) |
|
24 |
161520 |
G015C |
O-RING |
|
25 |
451170 |
G014C |
O-RING |
|
26 |
450330 |
2-309-12 |
SWIVEL FITTING |
|
27 |
390010 |
3208-30-38 |
SHORT HOSE |
450703 |
4000-9 |
Service Kit |
