For the latest parts pricing please use the Splash code in the search box in the top left hand corner.
Click here to access Service Manual

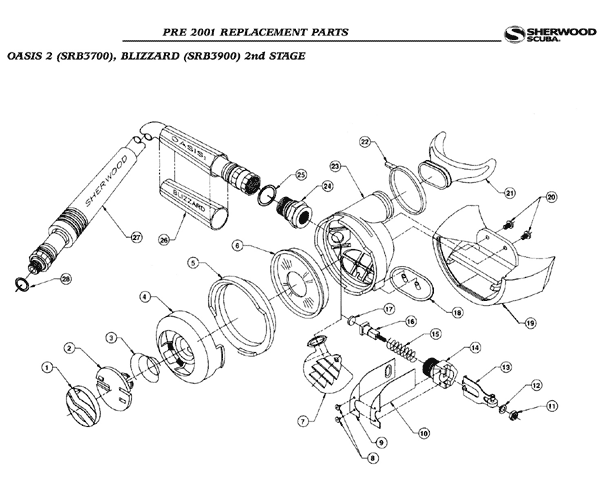

| Item: | Splash Code: | Part No: | Description: |
| 1 | 450652 | 3702-8 | Logo Insert |
| 2 | 180000 | 3702-6 | Purge Button |
| 3 | 180000 | 29-4006-12 | Purge Button Spring |
| 4 | Discontinued | 3702-3 | Cover |
| 5 | 180000 | 3602-17 | Retaining Ring |
| 6 | 450636 | 3602-4A | Diaphragm |
| 7 | 180000 | 25-3902-22 | Exhaust Heat Sink |
| 8 | 180000 | J11-348-38ET | Screw |
| 9 | 450386 | 25-3602-21 | Right Fin |
| 10 | 450387 | 25-3602-22 | Left Fin |
| 11 | 180000 | J11N0440BP | Adjusting Nut |
| 12 | 450643 | 3602-9A | Washer |
| 13 | 180000 | 3602-20A | Lever |
| 14 | 451086 | 9-3602-7 | Lever Support |
| 15 | 450270 | 19-3602-29 | Spring |
| 16 | 180000 | 29-3602-18 | Stem |
| 17 | 180000 | 978-9S | Seat Insert |
| 18 | 450640 | 3602-6A | Exhaust Valve |
| 19 | 180000 | 3702-7A | Exhaust Tee |
| 20 | 450650 | 3702-5 | Exhaust Tee Retaining Screw |
| 21 | 130315 | Comfy Mouthpiece | |
| 22 | 450660 | Mouthpiece Tie | |
| 23 | 180000 | 3602-1D | Case |
| 24 | 180000 | 1-3702-4 | Orifice Housing |
| 25 | 161499 | G010A | O-Ring |
| 26 | 180000 | 3702-9 | Oasis Logo Sleeve |
| 26A | 180000 | 3902-9 | Blizzard Logo Sleeve |
| 27 | 130245 | LP Regulator Hose | |
| 28 | 161500 | G011B | O-Ring |
450680 |
4000-15 |
Service Kit |
