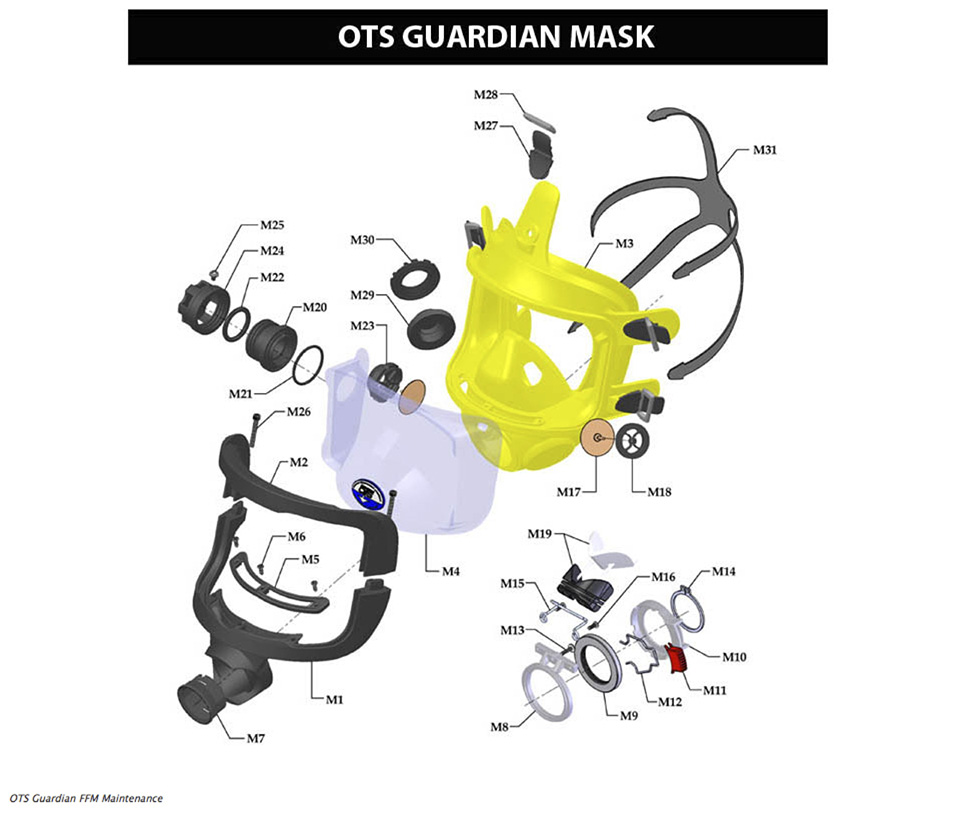

OTS Guardian FFM Maintenance |
|||
|
ITEM NO.
|
SPLASH CODE |
PART NO.
|
DESCRIPTION
|
- |
161020 |
900417-000 |
ANNUAL MAINTENANCE KIT |
|
M1
|
180000 |
871006-100
|
CASE CLAMP,LOWER v2 (black)
|
|
M2
|
180000 |
871007-000
|
CLAMP UPPER v2 (black)
|
|
M3
|
180000 |
872005-000
|
SKIRT (black)
|
|
M4
|
180000 |
871005-000
|
VISOR,OTS,W/ABV HOLE & RESIN DROP
|
|
M5
|
180000 |
871002-000
|
INTERIOR VENT CLAMP
|
|
M6
|
180000 |
244099-000
|
SCREW, INNER CLAMP
|
|
M7
|
180000 |
873004-000
|
MOUTHPIECE FLANGE
|
|
M8
|
180000 |
873001-000
|
EQUALIZER BASE
|
|
M9
|
180000 |
873005-000
|
INNER CLAMP RING
|
|
M10
|
180000 |
873003-000
|
QUICK-CONNECT CASING
|
|
M11
|
180000 |
873002-000
|
BUTTON,QUICK-RELEASE
|
|
M12
|
180000 |
873006-000
|
SPRING,QUICK-CONNECT
|
|
M13
|
180000 |
244098-000
|
SCREW, EQUALIZING BASE
|
|
M14
|
160840 |
248064-000
|
SNAP RING,QUICK CONNECT ASSY.
|
|
M15
|
180000 |
875003-000
|
WIRE FORM, EQUALIZING BLOCK
|
|
M16
|
180000 |
244018-000
|
SCREW,EQUALIZING WIRE FORM
|
|
M17
|
160860 |
282035-000
|
DIAPHRAGM,ONE-WAY VALVE
|
|
M18
|
160960 |
872004-000
|
SEAT,ONE-WAY VALVE
|
|
M19
|
161040 |
910385-000
|
EQUALIZING KIT,OTS,FFM
|
|
M20
|
180000 |
877001-000
|
BASE,ABV
|
|
M21
|
180000 |
283026-000
|
O-RING, ABV BASE
|
|
M22
|
180000 |
283021-000
|
O-RING, ABV CAP
|
|
M23
|
180000 |
877003-000
|
SEAT,VALVE,ABV
|
|
M24
|
180000 |
877002-000
|
CAP,OUTER,ABV
|
|
M25
|
180000 |
244086-000
|
SCREW,ABV,CAP STOP
|
|
M26
|
180000 |
244105-000
|
SCREW,VISOR FRAME
|
|
M27
|
160920 |
872001-000
|
BODY,BUCKLE,STRAP
|
|
M28
|
160940 |
872003-000
|
LOCK,BUCKLE,STRAP
|
|
M29
|
180000 |
876001-000
|
PLUG,COMPORT,BLANKING
|
|
M30
|
180000 |
246025-001
|
NUT,COMPORT,BLANKING PLUG
|
|
M31
|
160980 |
872006-000
|
STRAP,OTS FFM
|

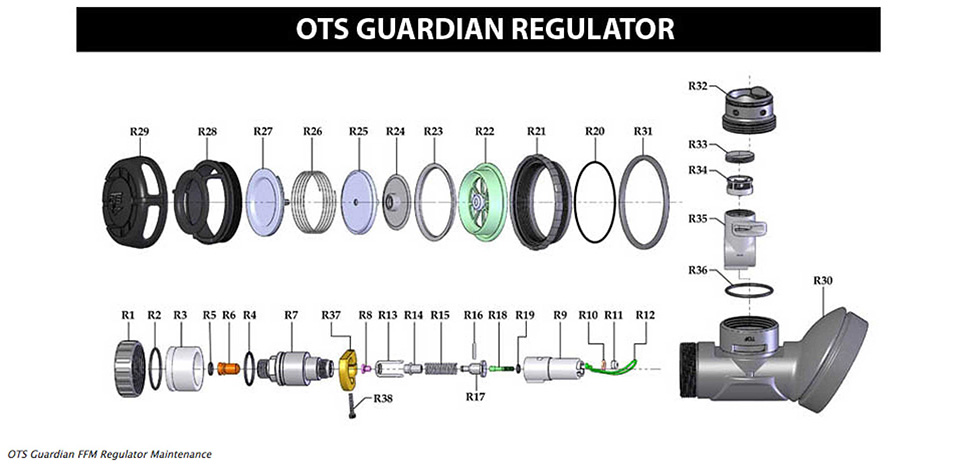

OTS Guardian FFM Regulator Maintenance |
|||
|
ITEM NO.
|
SPLASH CODE |
PART NO.
|
DESCRIPTION
|
|
R1
|
180000 |
881002-000
|
COLLAR,RETAINING,BLACK,REGULATOR
|
|
R2
|
180000 |
283030-000
|
O-RING,SPACER,VALVE BASE
|
|
R3
|
180000 |
881012-000
|
SPACER,VALVE,REGULATOR
|
|
R4
|
160900 |
283029-000
|
O-RING,VALVE BASE
|
|
R5
|
160880 |
283027-000
|
O-RING,ORIFICE
|
|
R6
|
180000 |
881004-000
|
ORIFICE,VALVE,REGULATOR
|
|
R7
|
180000 |
881001-000
|
BASE,VALVE,REGULATOR
|
|
R8
|
180000 |
881009-000
|
SEAL,VALVE,REGULATOR
|
|
R9
|
180000 |
881011-000
|
UPPER VALVE HOUSING
|
|
R10
|
180000 |
245007-001
|
WASHER,LEVER
|
|
R11
|
160820 |
246014-001
|
LOCKING NUT,NYLOK,TEFLON COATED
|
|
R12
|
180000 |
881003-001
|
DEMAND LEVER,TEFLON COATED
|
|
R13
|
180000 |
881008-000
|
RAILS,VALVE,REGULATOR,OTS FFM
|
|
R14
|
180000 |
881007-000
|
POPPET,VALVE,REGULATOR,OTS FFM
|
|
R15
|
180000 |
248065-000
|
SPRING,REGULATOR,OTS FFM
|
|
R16
|
180000 |
137047-000
|
PIN,DOWEL,M2 DIA,18-8SS
|
|
R17
|
180000 |
883030-000
|
ASSY,VALVE PLUNGER W/ O-RING
|
|
R18
|
180000 |
881010-000
|
SHAFT,POPPET,REGULATOR,OTS FFM
|
|
R19
|
180000 |
283032-000
|
O-RING,POPPET SHAFT
|
|
R20
|
180000 |
283035-000
|
O-RING,DIAPHRAGM ASSY
|
|
R21
|
180000 |
883012-000
|
RETAINING RING,DIAPHRAGM ASSY
|
|
R22
|
180000 |
883024-000
|
ASSY, MAIN DIAPHRAGM
|
|
R23
|
180000 |
883006-001
|
THRUST WASHER,DIAPHRAGM
|
|
R24
|
161000 |
883017-000
|
EXHAUST VALVE
|
|
R25
|
180000 |
883019-000
|
DISK,COUNTER PRESSURE
|
|
R26
|
180000 |
248067-000
|
SPRING,COUNTER PRESSURE
|
|
R27
|
180000 |
883020-000
|
GUIDE,COUNTER PRESSURE
|
|
R28
|
180000 |
883013-000
|
GUIDE FRAME,COUNTER PRESSURE
|
|
R29
|
180000 |
883021-000
|
COVER,REGULATOR PURGE
|
|
R30
|
180000 |
882004-000
|
HOUSING,REGULATOR,BLACK
|
|
R31
|
180000 |
883008-000
|
RING,COLOR ACCENT,SILICONE
|
|
R32
|
180000 |
882005-000
|
TUBE,MOUTHPIECE,REGULATOR
|
|
R33
|
180000 |
882001-000
|
CAP,AIR GUIDE
|
|
R34
|
180000 |
883027-000
|
ASSY,AIR GUIDE,CHECK VALVE
|
|
R35
|
180000 |
882002-000
|
AIR GUIDE
|
|
R36
|
180000 |
283031-000
|
O-RING,VALVE BODY
|
|
R37
|
180000 |
881013-000
|
INDEXING COLLAR,REGULATOR
|
|
R38
|
180000 |
244103-000
|
SCREW,INDEXING COLLAR
|
|
R42
|
180000 |
883028-000
|
ASSY.,DEMAND VALVE INSERT
|
