For the latest parts pricing please use the Pinnacle code in the search box in the top left hand corner.

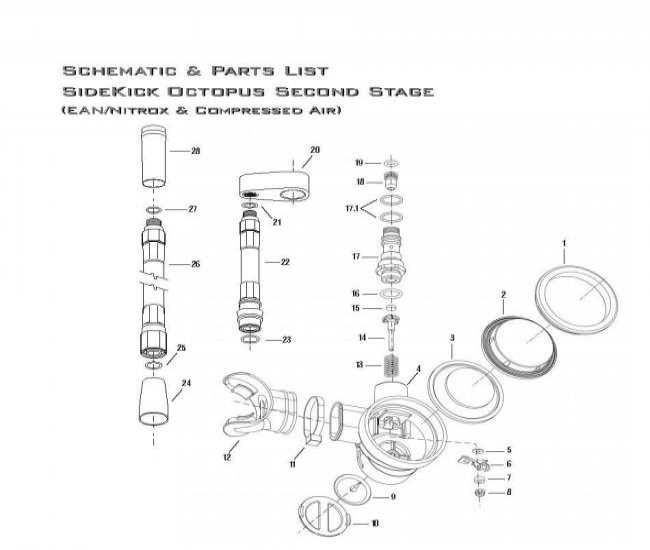

| Item: | Pinnacle Code: | Part No: | Description: |
| 1 | 681160 | G6553 | Cover Ring |
| 2 | 681043 | G5243 | Front Cover |
| 3 | 681130 | G6830 | Diaphragm |
| 4 | 681140 | G6387 | Case |
| 5* | 680960 | G5117 | Washer |
| 6 | 680900 | G4587 | Lever |
| 7 | 680855 | G4335 | Spacer |
| 8* | 680856 | G4336 | Nut |
| 9 | 680890 | G4576 | Exhaust Valve |
| 10 | 681135 | G6384-07 | Exhaust Grill |
| 11* | 450660 | Cable Tie | |
| 12 | 130315 | Mouthpiece | |
| 13 | 680945 | G5074 | LP Spring |
| 14 | 680853 | G4333 | Poppet |
| 15* | 680860 | G4340 | LP Seat |
| 16* | 680700 | G3-906 | O-Ring |
| 17 | 180000 | G36551R | Coupling |
| 17.1* | 180000 | G2-014 | O-Ring (2 req.) |
| 18 | 681170 | G6621 | Orifice |
| 19* | 680657 | G2-010 | O-Ring |
| 20 | 180000 | G36550R | Swivel Fitting |
| 21* | 680657 | G2-010 | O-Ring |
| 22 | 180000 | G16259-04 | QD LP Hose |
| 23* | 680658 | G2-011 | O-Ring |
| 24 | 180000 | G6325 | Hose Sleeve |
| 25* | 680657 | G2-010 | O-Ring |
| 26 | 180000 | G5253-27 | LP Hose 27" |
| 27* | 680800 | G3-903 | O-Ring |
| 28 | 130266 | Hose Protector | |
| * |
681765 |
PK065 |
Service Kit |
