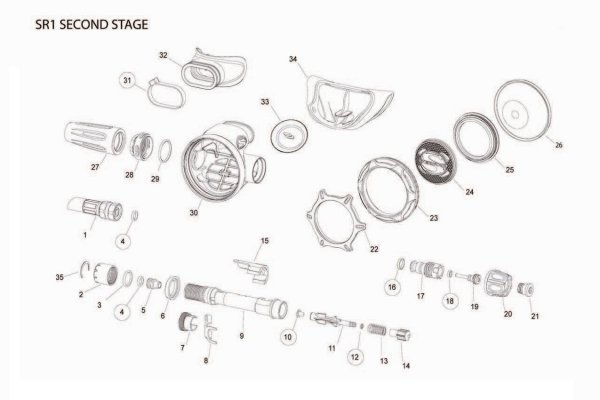

| Item |
Splash Code
|
Part No |
Description |
| 1 | 130245 | LP 3/8 Regulator Hose | |
| 2 | 450016 | 1200-2 | Adjustment Sleeve |
| 3 | 451114-4 | 970013 | O-Ring |
| 4 | 161499 | 970010 | O-Ring |
| 5 | 450017 | 1200-5 | Orifice |
| 6 | 450018 | 1200-6 | Ring Seal |
| 7 | 450019 | 1200-7 | Lever Saddle |
| 8 | 450020 | 1200-8 | Lever |
| 9 | 450021 | 1200-9 | Valve Body |
| 10 | 451042-5 | 7206-9BN | Seat |
| 11 | 450022 | 1200-11 | Poppet |
| 12 | 451115-3 | 970410 | O-Ring |
| 13 | 450023 | 1200-13 | Spring |
| 14 | 450024 | 1200-14 | Balance Chamber |
| 15 | 450025 | 1200-15 | Diverter |
| 16 | 972005 | O-Ring | |
| 17 | 1200-17 | Adjuster Body | |
| 18 | 451114-1 | 970006 | O-Ring |
| 19 | 450045 | 1200-19 | Stem |
| 20 | 1200-20 | Knob | |
| 21 | 450048 | 1200-21 | Knob Retainer |
| 22 | 450048-6 | 2200-21 | Accent Ring |
| 23 | 450049 | 1200-23 | Cover Ring |
| 24 | 450050 | 1200-24 | SR1 Cover |
| 25 | 450048-3 | 1200-25 | Cover Retainer |
| 26 | 450048-4 | 1200-26 | Diaphragm |
| 27 | 1200-27 | Hose Protector | |
| 28 | 450056 | 1200-28 | Retaining Nut |
| 29 | 451114-6 | 970016 | O-Ring |
| 30 | 450052 | 2200-30 | Housing |
| 31 | 450660 | Cable Tie | |
| 32 | 130313 | Mouthpiece | |
| 33 | 450048-5A | 1200-33 | Exhaust Valve |
| 34 | 450053 | 2200-34 | Exhaust Cover |
| 35 | 1200-35 | Clip | |
450707 |
|
1st & 2nd Stage Service Kit |
