SRB3601 SERIES 1ST STAGE - DISCONTINUED



For the latest parts pricing please use the Splash code in the search box in the top left hand corner.

Click here to access Service Manual

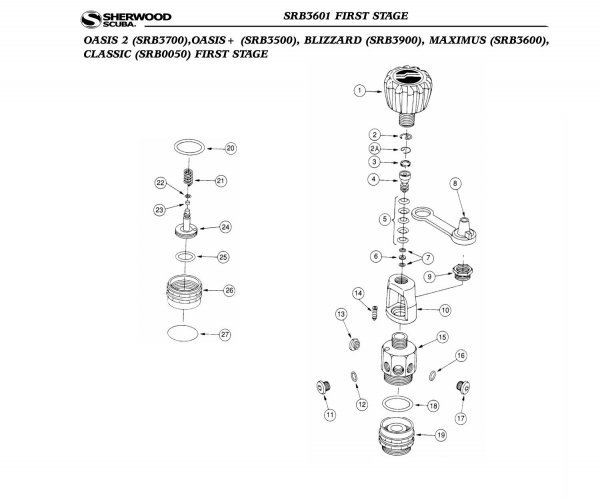

Item: Splash code: Part No: Description:

1

450860

5105-70

HANDWHEEL ASSEMBLY

2

451270

J2790056B

FILTER RETAINING RING

2A

450554

3504-6

STAR WASHER

3

450100

1390-7

FILTER

4

450407

29-3106-13A

MOVING ORIFICE (BARE)

5

450300

19-8010-8

DISC SPRING

6

451280

MS28774-007

BACKUP RING

7

451170

G007A

O-RING FOR MOVING ORIFICE

8

450970

5705-20

DUST CAP

9

450120

1-665-17

YOKE NUT

10

450320

2-1665-26

YOKE

11

790581



LP PORT PLUG - 3/8

12

161500

G011B

O-RING

13

450450

3106-6

ONE WAY BLEED VALVE

14

180000

J07S102408DB

LOCKING ALLEN SCREW

15

450333

2-3601-1A

MAIN BODY

16

451225

G904A

O-RING

17

790579



HP PORT PLUG - 7/16

18

451199

G024A

O-RING

19

180000

2-3601-7

PRESSURE ADJUSTING RING

20

161540

GO25A

O-RING

21

450668

3801-12B

MAIN SPRING

22

451140

G007A

O-RING

23

450670

3801-5

PISTON SEAT

24

450626

3601-10

PISTON ASSEMBLY

24A

450453



FILTER

25

161530

G022A

O-RING

26

450334

2-3601-8

CAP

27

180000

3601-15

CAP LABEL


450680
4000-15
Service Kit
