For the latest parts pricing please use the Pinnacle code in the search box in the top left hand corner.

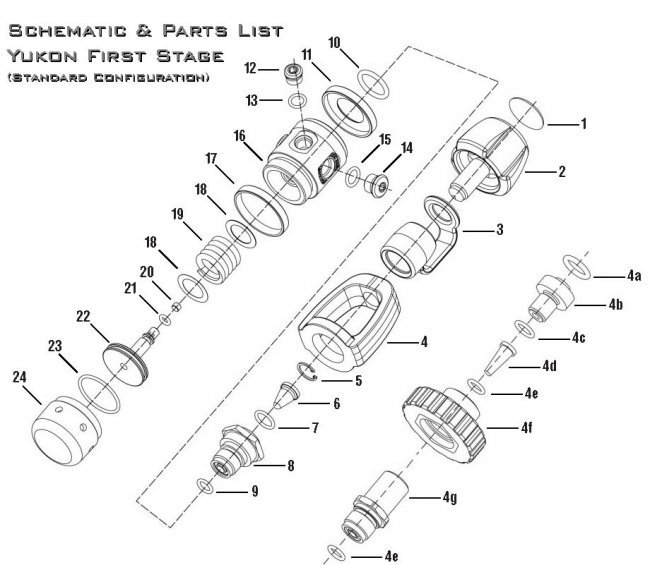

| Item: | Pinnacle code: | Part No: | Description: |
| 1 | 680994 | G521301 | DECAL |
| 2 | 680980 | G5201 | HANDWHEEL |
| 3 | 680985 | G5205 | DUST CAP |
| 4 | 681100 | G6316 | YOKE |
| 4A | 180000 | G6347N | O-RING, URETHANE, DIN |
| 4B | 180000 | G4544-200 | FILTER RETAINER, DIN |
| 4C | 180000 | GG2-012N | O-RING, VITON, DIN |
| 4D | 180000 | G4546 | FILTER, DIN |
| 4E | 180000 | G2-011N | O-RING, VITON, DIN |
| 4F | 180000 | G5218 | HANDWHEEL, DIN |
| 4G | 180000 | GG5226 | FILTER HOUSING, DIN |
| 5 | 680740 | G3530 | RETAINING RING |
| 6* | 680750 | G3545 | FILTER |
| 7* | 680660 | G2-013 | O-RING |
| 8 | 680720 | G3450 | YOKE RETAINER |
| 9* | 680658 | G2-011 | O-RING |
| 10 | 680685 | G2-115 | O-RING |
| 11 | 681002 | G5223 | STYLING CUP |
| 12 | 790579 | LP PORT PLUG | |
| 13 | 161501 | O-RING | |
| 14 | 790581 | HP PORT PLUG | |
| 15 | 161500 | O-RING | |
| 16 | 681000 | G5221 | BODY, YUKON FIRST STAGE |
| 17 | 680996 | G5216 | STYLING RING, NITROX |
| 18 | 680758 | G3547.01 | SPRING ISOLATOR - BLUE - 2psi |
| 680779 | G3547.21 | SPRING ISOLATOR - BROWN - 4psi | |
| 680765 | G3547.08 | SPRING ISOLATOR - PINK - 6psi | |
| 680772 | G3547.13 | SPRING ISOLATOR - YEL - 8psi | |
| 680770 | G3547.11 | SPRING ISOLATOR -WHITE- 10psi | |
| 19 | 681072 | G5272 | HP SPRING |
| 20* | 681069 | G5269 | HP SEAT |
| 21* | 680655 | G2-008 | O-RING |
| 22 | 680950 | G5083 | PISTON |
| 23* | 680670 | G2-023 | O-RING |
| 24 | 681003 | G5224 | END CAP |
| * |
681900 |
PK300 |
Service Kit |
