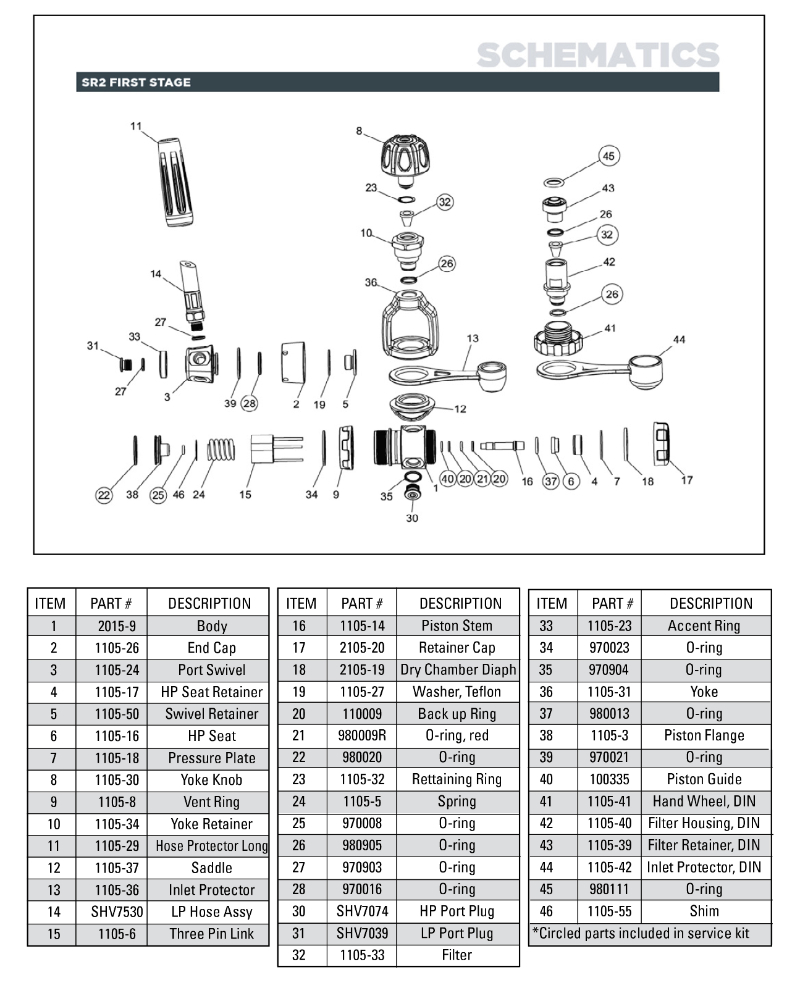

| Item | Splash Code: | Part No: | Description: |
450707 |
SERVICE KIT |
1st & 2nd Stage Service Kit |
|
| 1 | 2105-9 | Body | |
| 2 | 1105-26 | End Cap | |
| 3 | 1105-24 | Port Swivel | |
| 4 | 1105-17 | HP Seat Retainer | |
| 5 | 1105-50 | Swivel Retainer | |
| 6 | 450009 | 1105-16 | HP Seat |
| 7 | 1105-18 | Pressure Plate | |
| 8 | 450011 | 1105-30 | Yoke Knob |
| 9 | 1105-8 | Vent Ring | |
| 10 | 1105-34 | Yoke Retainer | |
| 11 | 1105-29 | Hose Protector Long | |
| 12 | 450011-7 | 1105-37 | Saddle |
| 13 | 450011-6 | 1105-36 | Dust Cap |
| 14 | LP Hose | ||
| 15 | 1105-6 | Three Pin Link | |
| 16 | 1105-14 | Piston Stem | |
| 17 | 450318 | 2105-20 | Retainer Cap |
| 18 | 450317 | 2105-19 | Dry Chamber Diaphragm |
| 19 | 1105-27 | Teflon Washer | |
| 20 | 105009 | Back Up Ring | |
| 21 | 980009R | O-Ring, red | |
| 22 | 980020 | O-Ring | |
| 23 | 450011-2 | 1105-32 | Retaining Ring |
| 24 | 1105-5 | Spring | |
| 25 | 451114-2 | 970008 | O-Ring |
| 26 | 980905 | O-Ring | |
| 27 | 451114-3 | 970011 | O-Ring |
| 28 | 451114-6 | 970016 | O-Ring |
| 30 | 790579 | SHV7074 | HP Port Plug |
| 31 | 790581 | SHV7039 | LP Port Plug |
| 32 | 1105-33 | Filter | |
| 33 | 1105-23 | Accent Ring | |
| 34 | 451115-1 | 970023 | O-Ring |
| 35 | 970904 | O-Ring | |
| 36 | 450011-1 | 1105-31 | Yoke |
| 37 | 980013 | O-Ring | |
| 38 | 1105-3 | Piston Flange | |
| 39 | 970021 | O-Ring | |
| 40 | 100335 | Piston Guide | |
| 41 | 1105-41 | Hand Wheel, DIN | |
| 42 | 1105-40 | Filter Housing, DIN | |
| 43 | 1105-39 | Filter Retainer, DIN | |
| 44 | 1105-42 | Dist Cap, DIN | |
| 45 | 980111 | O-Ring | |
| 46 | 450015 | 1105-55 | Shim |
| 47 | SAA5400 | DIN Kit |
